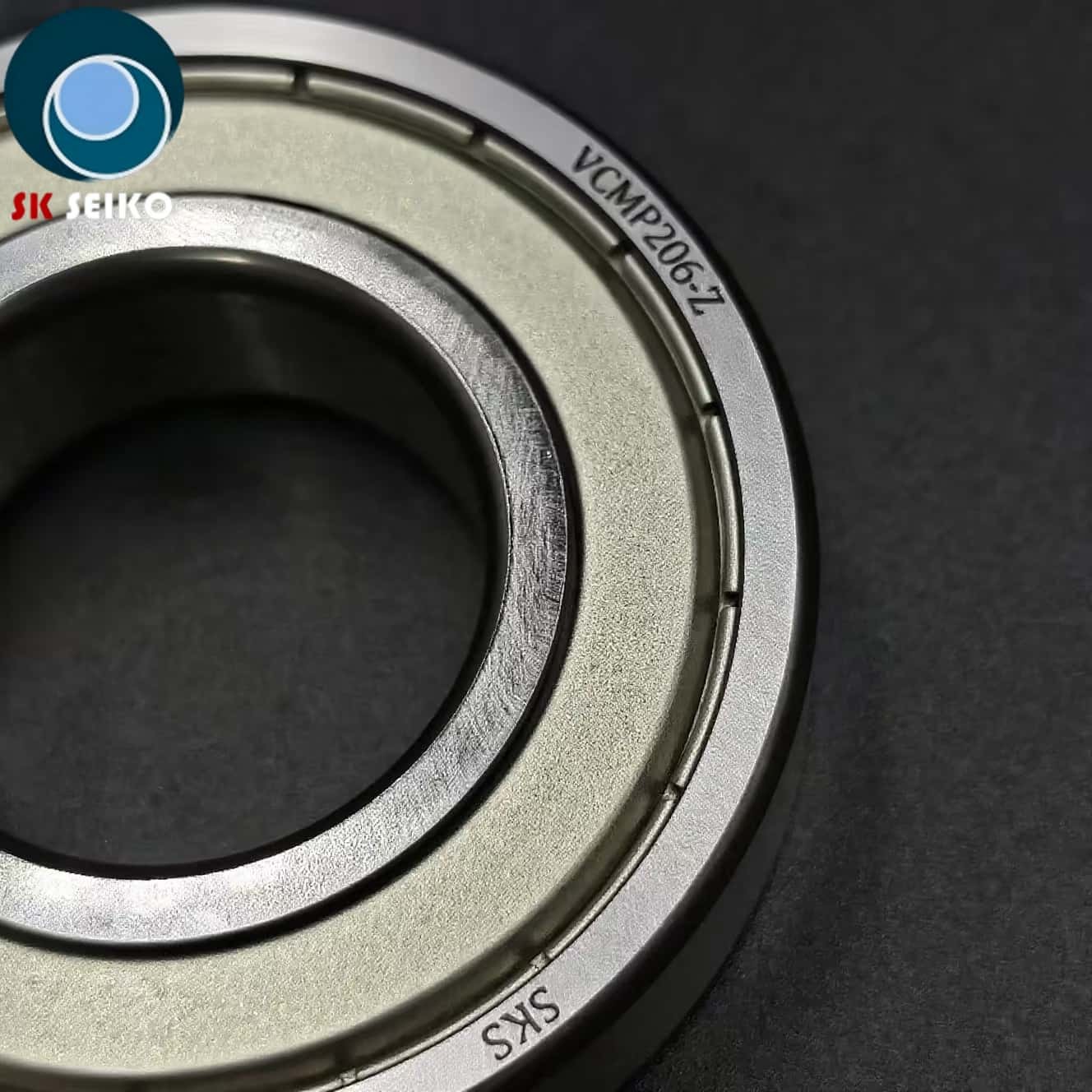

VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor Photovoltaic PV Lithium Battery Li-ion Battery Chemical Industry Pharmaceutical Industry LCD Panel
Pumps bearing specifications:
Bearing systems for dry vacuum pumps, precision pumps, and other specialized pump configurations. Suited for automotive applications including electric drive systems (E-Drive), lidar (LiDAR), and turbine superchargers. In industrial settings, these bearings are compatible with dry vacuum pumps, molecular pumps, machine tool spindles, chemical fiber winding machinery, and humanoid robot actuators.
Product Features:
Less vibration, Less noise, Antirust, Corrosion resistant
High-Precision Machining ,Tolerance of precision grade P4 (ABEC 5)
Maximum rotating speed up 6000 rpm
Key Advantages of Our Pumps Bearing Products:
Advanced Ceramic Balls:Customized ceramic rolling elements enhance oil film thickness, reduce contact stress, and optimize friction performance for smoother operation.
Specialized Heat Treatment :Proprietary process minimizes residual austenite content, ensuring dimensional stability under high-temperature conditions.
Advanced Sealing Design:Dual-layer seals maintain clean lubrication while blocking contaminants, protecting bearing raceways from wear.
Long Service Life:Under optimized lubrication, noise life is extended, oil oxidation is mitigated, and surface pitting is alleviated.
Product Parameters:
| NO. | Bearing type | Inside Diameter | Outer Diameter | Inner ring width | Shield | Retainer(Cage) | Balls material |
| d | D | B |
| 1 | VCMP 206* | 30 | 62 | 16 | Double shield | PF | ceramics |
| 2 | VCMP209 | 36.5 | 85 | 19 | Double shield | IRON Retainer | ceramics |
| 3 | VCMP114 | 45 | 110 | 19 | Double shield | IRON Retainer | ceramics |
| 4 | VCMP211 | 55 | 100 | 21 | Double shield | PF | ceramics |
| 5 | VCMP212 | 45 | 110 | 22 | Double shield | PF | ceramics |
| 6 | VCMP6007* | 35 | 62 | 14 | Double shield | PF | ceramics |
| 7 | C104-2RZ | 20 | 42 | 12 | Double shield | PF | ceramics |
| 8 | 626B | 6 | 19 | 6 | Double shield | special designing | ceramics |
| 9 | 624 | 4 | 13 | 5 | Double shield | special designing | ceramics |
| 10 | 3307 | 35 | 80 | 34.9 | Double shield | IRON Retainer | ceramics |
